Setting up solar panel systems can be a complex task, but the Eco-Worthy 4 String PV Combiner Box simplifies the process.

We recently had the opportunity to install this combiner box and found it incredibly easy to use.

Its design allows for quick integration with existing systems, thanks to the mounting buckle and pre-connected cables.

We were impressed by the sturdy build of the Eco-Worthy Combiner Box, making it suitable for outdoor environments. The IP65 waterproof rating and built-in lightning arrester provide added peace of mind against harsh weather conditions.

This product supports single PV connections under 10A, making it versatile for various solar setups.

Many appreciate the combiner box for its organized design and ease of installation.

The features, like individual fuses for each array and surge protection, make it a smart choice for both experienced solar users and beginners.

Bottom Line

The Eco-Worthy Combiner Box is a reliable option for managing solar panel systems. With its focus on safety and ease of use, it’s a solid choice for those looking to enhance their setup. Check it out here to make your solar project even better!

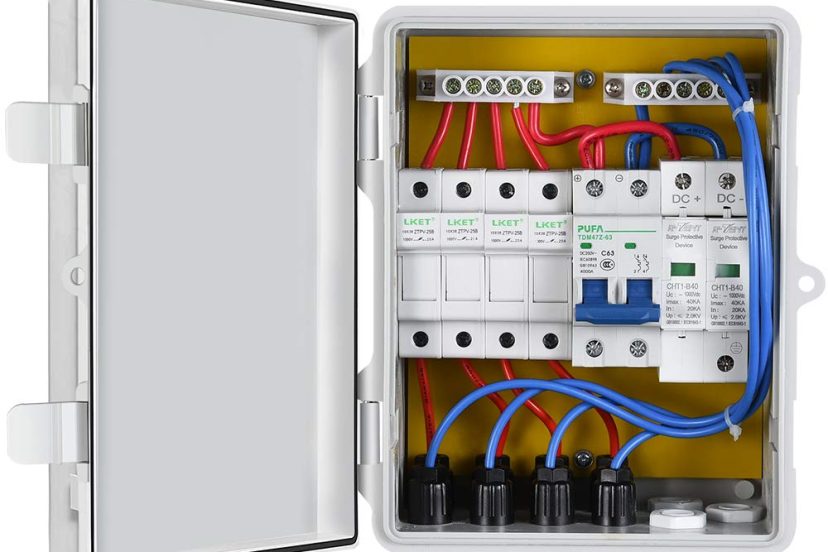

Overview of ECO-WORTHY 4 String PV Combiner Box

We’ve just gotten our hands on the ECO-WORTHY Combiner Box. It’s designed with user-friendliness in mind, being extremely straightforward to install.

The mounting process is smooth, and the pre-connected cable helps keep things tidy.

This box handles up to four strings with 10A fuses, and the lightning arrester gives extra protection in outdoor settings. The IP65 waterproof rating means it can withstand rain, which is great news for solar setups outside, including RV systems.

Pros and Cons

• Pros: Easy installation, durable, multiple protective features
• Cons: Limited to single PV connections below 10A/250Vdc

The build feels sturdy, and it has proven reliability.

It’s not without its limits, though, so ensure your setup fits within its capacity.

Easy Installation and Operation

Setting up the ECO-WORTHY combiner box is simple and hassle-free.

We appreciated not needing any keys to open it, thanks to the mounting buckle. This design makes it perfect for quick access and adjustments.

The plug-and-play feature with pre-connected cables saved us a lot of time and made the whole installation process straightforward.

We found the box mounts easily on any regular surface, adding convenience for different setups. It’s clear that the design prioritizes user-friendliness.

Now, on the downside, aligning everything can take a bit of effort to make sure it’s all secure, but the overall result is a sturdy system.

When operating the unit, everything ran smoothly. It connects well with our solar panels, enhancing efficiency without any noticeable issues.

The organized setup makes managing the solar panel connections less overwhelming.

Overall, it’s a reliable choice for anyone looking to simplify their solar setup.

Robust Circuit Protection

We’ve had the chance to see the ECO-WORTHY Combiner Box in action, providing impressive protection features.

The device includes circuit breakers and fuses that help prevent issues, keeping things safe and functioning smoothly.

It’s confidence-boosting to have such protection when dealing with solar setups, knowing it can guard against unexpected problems like surges.

Key Features:

• Fuses: These are essential for preventing overloads.
• Circuit Breakers: They automatically stop power flow in case of unexpected incidents.
• Lightning Arrester: Protects equipment from lightning strikes.

One concern is the space inside the box, which feels a bit limited for those with larger cables. This can be slightly tricky during installation.

Despite this, the component choices in this combiner box add a solid layer of protection, making the task of managing solar systems a hassle-free experience.

Ready for Outdoor Challenges

When it comes to dealing with the outdoors, the ECO-WORTHY Combiner Box proves to be a reliable choice.

We’ve tested it with our solar setup, and its performance in harsher outdoor conditions stands out.

It offers protection against lightning and water with its IP65 waterproof rating, providing peace of mind for outdoor installations.

The robust build makes us confident in its ability to endure various weather conditions.

Its design includes essential features like lightning protection and reverse-current prevention, ensuring safe operation.

It’s user-friendly, with easy installation and good organization of cables, which saves time and reduces hassle.

Despite its sturdy and practical features, some might find its size a bit bulky, depending on the mounting location.

Still, the box is a solid contender for anyone looking to enhance their solar system outdoors, offering durability and simplified connectivity.

Compatibility with Solar Systems

We found that this combiner box connects well with both on-grid and off-grid solar panel systems.

It’s easy to integrate, supporting up to four strings of panels, which is great for expanding setups.

Making connections was straightforward, and the system performs reliably in varying conditions.

One aspect we noticed is the need for proper placement because it’s not fully weatherproof. Care should be taken to ensure it’s installed in a protected area for lasting performance.

This thoughtful integration adds a layer of protection against lightning strikes too.

Overall, while the setup process is clear, installing the box in an unsuitable environment could impact its durability.

It’s reassuring to have built-in circuit breakers and a lightning arrester, which work well. This makes maintaining safety standards simpler and should ease concerns about protecting the solar array.

Proven Durability and Support

Using this ECO-WORTHY combiner box has shown that it can handle tough conditions.

Its sturdy build makes it reliable for continuous outdoor use.

The peace of mind we get from the lightning protection and IP65 waterproof rating is significant.

It connects easily and feels secure when setting up multiple panels.

We appreciate knowing that even if a panel has issues, the system remains safe and operational.

It’s been a trusty part of our solar setup, providing the support we needed. The combination of robust materials and thoughtful design proves its long-term reliability.

Pros and Cons

Pros

One thing we noticed about the Eco-Worthy Combiner Box is how straightforward it is to install.

It’s designed with pre-connected cables and a mounting buckle that doesn’t require a key. We appreciated how this feature made it a plug-and-play solution for solar panel systems.

Another strength is its outdoor suitability. Equipped with lightning and surge protection, plus an IP65 waterproof rating, it’s crafted to withstand various weather conditions.

This makes it a reliable choice for renewable energy setups outside.

The durability of this product is another highlight. From our experience, its well-constructed design suggests that it can endure long-term use, proving its quality to be trustworthy.

Cons

Despite its strengths, we found a few drawbacks.

While the box supports up to 10A per PV string, we’ve seen some setups where a higher capacity might be necessary. Those working on larger systems might need additional solutions.

Some users needed better information on certifications for the installed breakers and fuses. Having clearer documentation could enhance confidence in its regulatory compliance, especially for those new to solar setups.

Customer Reviews

We recently tested the ECO-WORTHY combiner box, and it shows a wide range of customer opinions.

A common highlight is how it made solar setups easier and safer, allowing effortless reconfiguration. Users appreciate its features like the easy installation and built-in protections, which contribute to a smooth experience.

While some had concerns about the terminal caps, most found simple solutions with basic tools. This speaks to the quality and practicality, as many have successfully run high-wattage strings without hiccups.

A few reviews noted that the enclosure withstands outdoor conditions well, showing its durability.

The brand’s customer service also leaves a positive impression, stepping in to resolve issues promptly. These experiences reflect that our situation aligns well with other users, showing satisfaction with both function and support.

Overall, real-world use of this combiner box proves it to be a valuable component in a solar setup.

Conclusion

Our experience with the Eco-Worthy Combiner Box left us impressed. Its sturdy build and clever design made connecting our solar panels straightforward and secure.

Check it out on Amazon for the lowest price and click the coupon box for instant savings!

We appreciated the reliability of its fuses and circuit breakers, providing peace of mind with our setup. While we did encounter some minor challenges with fitting everything perfectly, a bit of adjustment fixed it.

This combiner box is certainly a worthwhile investment for those building or upgrading solar systems, offering ease of reconfiguration and added safety. We noticed the box performed well even in outdoor conditions, which was a big plus.

Despite some concerns about the certifications, everything worked as expected, and we found it reliable.

In summary, this product fits seamlessly into a solar setup, saving time and effort while ensuring safety. We felt its features make managing multiple strings a hassle-free task.

Frequently Asked Questions

How do you install a 4-string solar combiner box?

When setting up the 4-string solar combiner box from ECO-WORTHY, it’s a breeze thanks to the user-friendly design. No need for any special tools as it’s equipped with a mounting buckle.

We simply placed the box on a regular surface and connected the cables effortlessly. It feels sturdy and well-organized, making the connection of our solar panels straightforward.

What is the role of a combiner box in a solar PV system?

In our solar PV system, the combiner box plays a crucial role. It combines multiple strings of solar panels into one output, allowing us to streamline the energy flow into the inverter.

This box provides individual fuses for each array, ensuring safety by protecting against overload conditions. Its built-in lightning arrester and circuit breakers add another layer of safety, which we really appreciate.

Can you provide a wiring diagram for a solar combiner box?

While we can’t provide a detailed wiring diagram here, the ECO-WORTHY combiner box comes with pre-connected cables that make wiring pretty intuitive.

The box offers MC4 connections, which we found quite easy to work with. Our tip would be to refer to the manufacturer’s manual for accurate guidance, as proper installation ensures optimal performance and safety.

What should I consider when choosing the size of my PV combiner box?

Choosing the right size for a PV combiner box depends on a few factors. We looked at the number of panel strings in our system and their current ratings.

The ECO-WORTHY box supports up to four strings with a maximum of 10A for each input. Keeping within these limits ensures safe and efficient operation of our solar setup.

How does a solar combiner box enhance the safety and efficiency of a solar system?

The safety features in the combiner box are impressive. By housing circuit breakers and fuses, it protects our system from potential faults.

The lightning arrester reduces risks during storms. Additionally, the box simplifies system management by consolidating wires.

This not only makes maintenance easier but also enhances the overall efficiency by minimizing energy loss.

What are the key components of a PV combiner box?

In the ECO-WORTHY box, we noticed several key components that contribute to its effectiveness.

It includes a 500V 63A PV DC circuit breaker and 10A rated current fuses.

The 9AWG cables are durable and handle voltage safely.

With its waterproof IP65 rating, the box stays protected from weather elements, making it reliable for outdoor use.

These features ensure that our solar system runs smoothly and securely.
